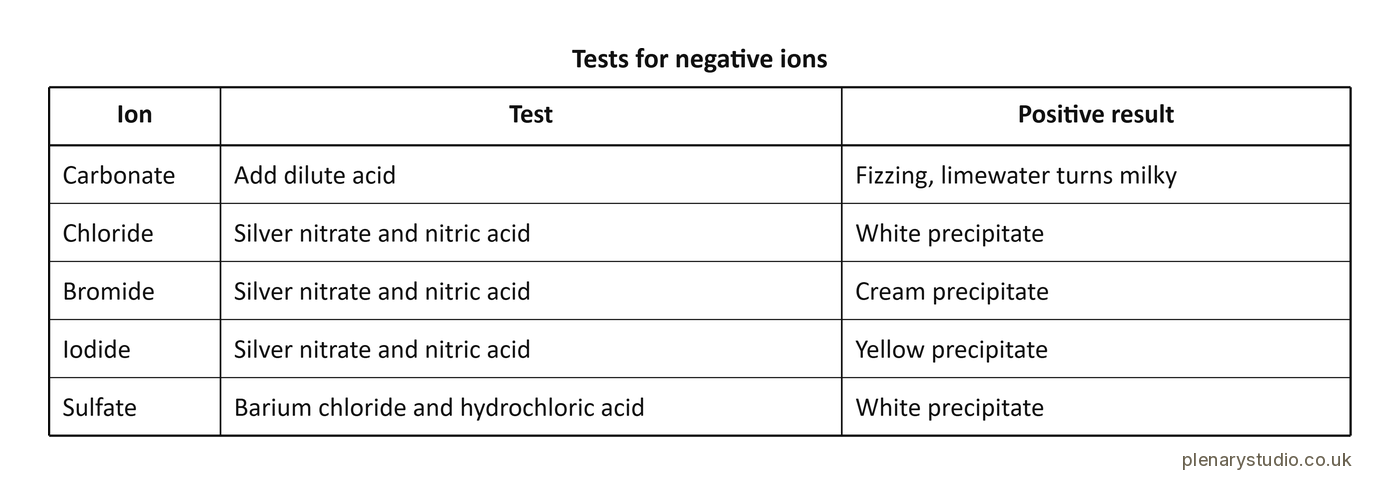

The tests for negative ions, carbonate, chloride, bromide, iodide and sulfate, as one reference table with the reagent and the positive result for each. One click in the science table builder puts it on the board.
A hand-built replica of the real builder page, not a screenshot. Every control shown exists in the product.
Part of the Science table, Bond energies table, Flame test colours and Tests for gases pages.
The halide rows are the ones to teach from the table. Chloride, bromide and iodide all use silver nitrate with nitric acid, and the answer is a colour on a gradient, white, cream, yellow, which pupils muddle unless they see the three together. The acid is there for a reason worth saying out loud, it removes carbonate ions that would otherwise give a white precipitate of their own.
Sulfate follows the same pattern with barium chloride and hydrochloric acid, and carbonate is the odd one out, a fizz you pass through limewater. Laid out as five rows the logic is visible, acid first to clear the carbonate, then the reagent that names the ion, and a class that has read it that way can reproduce it in the required practical rather than recite it.
Diagnostic multiple choice. Each answer reveals what the class does and doesn't understand.
Click a number and watch it land on a question at random. Built for cold-call questioning.
Automate show, cover, and recall tasks. Great for memorising diagram features or keywords.
Questions beside a visual stimulus. A YouTube clip, diagram, graph, or a paragraph to read closely.
Shell diagrams for atoms and ions, with dots or crosses, hidden electrons and side-by-side comparison.
Dot-and-cross diagrams for ionic and covalent bonding, with a stepped build-up, hidden electrons and labels.
Curated, balanced GCSE reaction equations, ready to blank for recall.
Generate chemistry calculations with scaffolded, worked solutions.
Every tool turns a few inputs into a clean, exam-ready diagram.
Practical results tables with repeat readings, a mean and an optional anomaly, plus curated reference data.
A bond energies table beside the balanced equation, with the structures drawn so pupils can count bonds.
The flame colour each metal ion gives, as a reference table for the board in one click.
The test and positive result for hydrogen, oxygen, carbon dioxide and chlorine.
Upload any diagram and the labels are suggested for you to drag, edit and blank.
